One-Piece
Double Cupholder - Style #SP-D205PG

Drawing not to scale.

The SP-D205PG one-piece Double Cupholder is a direct replacement for the Gulfstream G300-G550 (GIV/GV) cupholder.  It also is available in combinations of 3 different inside diameters and different depths up to 2.25".
Standard depth is 1.50". The SP-D205S one-piece Double Cupholder is available in combinations of 3 different inside diameters and different depths up to 2.25" deep.
Standard depth is 1.50".

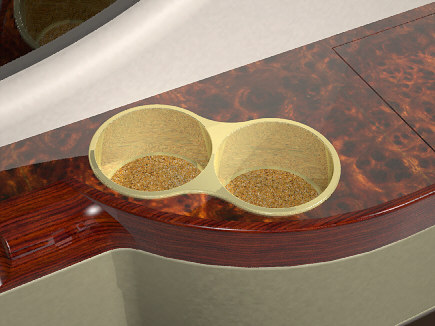

(3.00DBSP-D205PG-1.75 - shown above.)

**Examples shown with optional plated finishes.

One-Piece - Double Cupholder - Style #SP-D205PG
S p e c i f i c a t i o n s    a n d    P r i c i n g.

SERIES

Hole Cut Size***

Inside Diameters

OA Dim.
Width / Length

Rim Height Above Surface

Depth*
(Standard)

Pricing

2.75DB

ID Dim. +.12

2.78" / 2.78"

3.16" / 6.06"

.09"

1.50"

please call

3.00DB

ID Dim. +.12

3.03" / 3.03"

3.41" / 6.56"

.09"

1.50"

please call

3.25DB

ID Dim. +.12

3.28" / 3.28"

3.66" / 7.06"

.09"

1.50"

please call

   *Depth is from mounting surface to bottom of cupholder.
    Optional depths available.  Maximum 2.25".
  **Quoted prices are for unplated, satin aluminum finish with no inlay fills.
***Cutout dimensions are approximate and may not include relief for all required areas.
    Minimum quantity order is 8 units.
