Two-Piece
Double Cupholder - Style #D203PT

Drawing not to scale.

The D203PT Double Cupholder provides the best of all worlds.  It is available in several different inside diameters and depth combinations.  Each cupholder area can be a different depth and with the figure "8" design a coffee mug with handle can also be accommodated.  Standard depth is 1.50" / 2.60" with 4.00" readily available as an option.

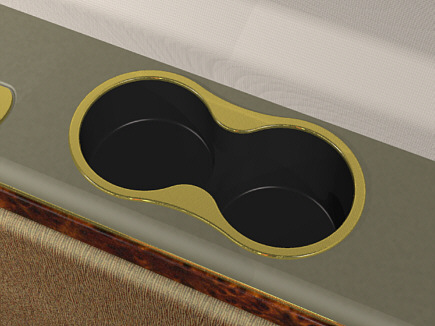

(3.00DB-D203PT-C4.00/1.50 shown above)

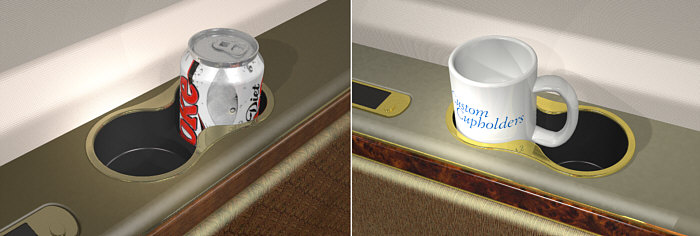

**Examples shown with optional plated finishes and with standard satin black powder coated bottom cups.

Two-Piece - Double Cupholder - Style #D203PT
S t a n d a r d    S p e c i f i c a t i o n s

SERIES

Standard Hole Cut Sizes

Standard Inside Diameters

OA Dim.
Width / Length

Rim Height Above Surface

Depth
(Standard)

2.75DB

OA Dim. -.25

2.78" / 2.78"

3.28" / 6.31"

.09"

1.50" / 2.60"

3.00DB

OA Dim. -.25

3.03" / 3.03"

3.53" / 6.81"

.09"

1.50" / 2.60"

3.25DB

OA Dim. -.25

3.28" / 3.28"

3.78" / 7.31"

.09"

1.50" / 2.60"

NOTES:
Depth is from mounting surface to outside bottom of cupholder.
Standard finishes are unplated, satin aluminum.
Bottom cups are available with satin black powder coat finish at no additional charge.
Cutout dimensions are approximate and may not include relief for all required areas.
Combination of different inside diameters are easily accommodated.
