Two-Piece
Double Cupholder - Style #D203C

Drawing not to scale.

The D203C is specifically designed to be used along a radius.  It is available in 3 different inside diameters and comes with a one-piece uniform depth bottom cup that is 1.75" deep.  Other depths are available.

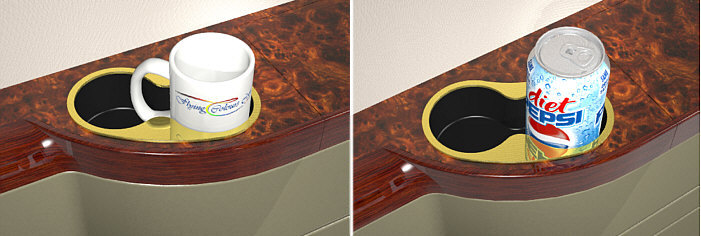

Besides glassware and beverage cans the open figure "8" style will also accommodate coffee mugs with handles.

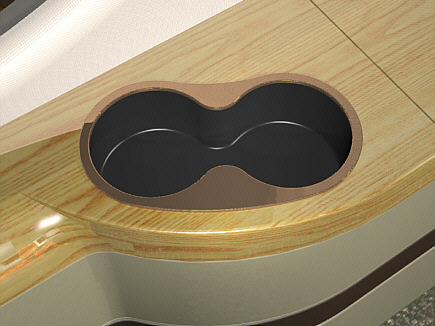

(3.00DB-D203C-1.75 shown above)

**Examples shown with optional plated finishes and with standard satin black powder coated bottom cup.

Two-Piece - Double Cupholder - Style #D203C
S t a n d a r d    S p e c i f i c a t i o n s

SERIES

Standard Hole Cut Sizes

Standard Inside Diameters

OA Dim.
Width / Length

Rim Height Above Surface

Depth
(Standard)

2.75DB

OA Dim. -.25

2.78" / 2.78"

3.53" / 6.31"

.09"

1.75"

3.00DB

OA Dim. -.25

3.03" / 3.03"

3.79" / 6.81"

.09"

1.75"

3.25DB

OA Dim. -.25

3.28" / 3.28"

4.05" / 7.31"

.09"

1.75"

NOTES:
Depth is from mounting surface to outside bottom of cupholder.
Standard finishes are unplated, satin aluminum.
Bottom cups are available with satin black powder coat finish at no additional charge.
Cutout dimensions are approximate and may not include relief for all required areas.
Combination of different inside diameters are easily accommodated.
