Two-Piece
Appearance Rim Style #S102

End section through cupholder.
Shown with standard height cup.
Drawing not to scale.

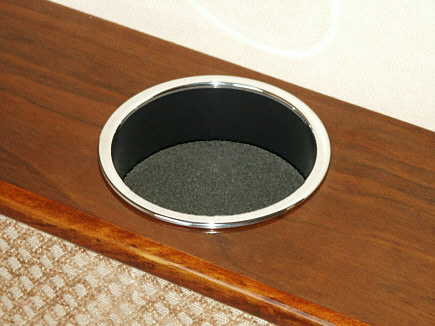

**Example shown:  Optional plated polished chrome top appearance rim
with standard satin black cup and optional, washable foam insert.

Premium Collection           Standard Collection          Double Collection          Custom Items

Two-Piece Premium Collection Cupholder with Appearance Rim Style #S102
S p e c i f i c a t i o n s    a n d    P r i c i n g.

SERIES

Inside Diameter

Hole Cut Size

Outside Rim Diameter

Height Above Surface

Depth w/
Low Profile
Cup
(L)*

Depth w/ Standard Height Cup (H)*

Price
Each**

2.75

2.78"

3.00"

3.25"

.09"

0.40"

1.50"

$95.26

3.00

3.03"

3.25"

3.50"

.09"

0.40"

1.50"

$98.74

3.25

3.28"

3.50"

3.75"

.09"

0.40"

1.50"

$102.66

 *Depth is from mounting surface to bottom of cupholder.
   Low height cup is intended for table leaf mounting.
**Prices shown are for unplated top appearance rims and standard satin black cups.
   Prices shown include cork bottom insert (not shown).
