Custom Collection

Two-Piece
Oval Appearance Rim Style #O102P

Custom Cupholders Oval Style Rim

End section through cupholder.
Shown with standard height cup.
Drawing not to scale.

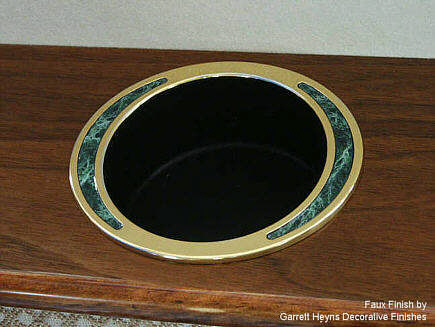

**Example shown: Optional plated, polished gold top appearance
rim with faux inlay areas.  Bottom cup standard satin black.

Two-Piece Cupholder with Oval Style Appearance Rim #O102P
S p e c i f i c a t i o n s    a n d    P r i c i n g.

SERIES

Inside Diameter

Hole Cut Size

Outside Rim Diameter

Height Above Surface

Depth w/
Low Profile
Cup
(L)*

Depth w/ Standard Height Cup (S)*

Depth w/ Extended Height Cup (H)*

Price
Each**
Qty. 1-9

Price
Each**
Qty. 10-19

Price
Each**
Qty. 20+

2.75

2.78"

3.00"

3.25" / 3.80"

.09"

0.40"

1.25"

1.50"

$110.22

$101.40

$96.99

3.00

3.03"

3.25"

3.50" / 4.05"

.09"

0.40"

1.25"

1.50"

$112.56

$103.56

$99.05

3.25

3.28"

3.50"

3.75" / 4.30"

.09"

0.40"

1.25"

1.50"

$117.25

$107.87

$103.18

 *Depth is from mounting surface to bottom of cupholder.  Other depths available.
   Low height cup is intended for table leaf mounting.
**Prices shown are for unplated top appearance rims with no inlay areas or fills
    and standard satin black cups.  Price includes cork bottom insert (not shown).
   click here for more information

To Develop a Part Number:
Example:

Series# - Rim Style# - Depth
       3.00   -   O102P   -   S
